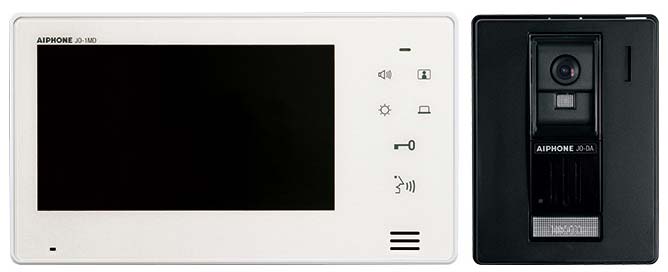

Japanese Quality Video Intercom with a surface mount black outdoor camera station with night light and illuminated labelled (optional) button that calls inside where an image of the visitor appears on a 7" colour monitor, an occupant may press a button to talk to the visitor like they're on a speaker phone or can use it like the old style press to talk - release to listen intercom.

Two Gate/Door Buttons

A lock button on the monitor releases an electric lock on a pedestrian gate or front door. A second button on the monitor can open an automatic driveway gate or garage door.

Chime Volume Adjustment

The chime volume can be adjusted for the space its in or muted in case no-one wants to be disturbed.

Power Requirements

The Intercom comes with an 18V transformer that can either go next to the monitor or away from the monitor with a low voltage power cable run to it. The outdoor camera requires no power connected as its power is passed through the 2 wires between the Monitor and the Outdoor Camera along with everything else.

The lock Outputs

The lock outputs from this intercom are on the monitor so an extra two wires are required from the monitor to each gate or door. The outputs maybe wired to activate an electric lock for a pedestrian gate requiring a separate power source to match the electric lock or can be directly connect to a gate or garage door operator. See wiring diagram below and our page on installing intercoms for more information on how this works.

Includes

1 x JO-DA Outdoor Camera + 1 x JO-1MD Monitor + PS18 Power supply (transformer). The extension chime and electric lock are chosen separately.

Wire Type Size verses Distance

The wire between the Outdoor Camera and Indoor Monitor or between the monitor and extension chime should have 2 solid cores (not stranded), should not be a twisted pair and should have a weather proof polythene sheath. The size of the wire verses distance is:

0.65mm dia. to 50m - 0.8mm to 100m

The wire between the Power Supply (transformer) and the Monitor should be the same as above but the size verse distances are:

0.65mm dia. to 5m - 0.8mm dai. to 10m.

... more on Installing Low Voltage Cabling

Dimensions
