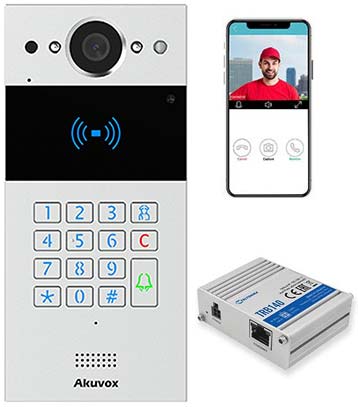

Akuvox R20K - 4G Video Gate Intercom with Built in Digital Keypad and RFID Reader the Calls Smartphone or Indoor Monitor
The Akuvox R20K Video Intercom Outdoor station paired with a TBR140 4G Gateway forms a 4G Video Gate Intercom that uses the 4G or 3G Mobile Phone network to connect to the Internet eliminating the need for installing any cabling from a gate to residences that can save a lot of money for new or established communities and for established communities there is no disruption of having existing paving dug up to install cables or unsightly cables run up walls. Does require a SIM for a small monthly fee though and some cable run between the Outdoor Station and Gates. If replacing an old system the existing cables to gates can normally be reused.
read more about the TRB140 4G Gateway
Can call up to 4 Smartphones or Tablets with the Smartplus App and no monitor for a one off fee of $69 for this service or for can call up to 8 Indoor Monitors such as the Akuvox C313W that are connected to a Home Internet Router. If using a monitor the Smartplus Apps are free. System includes call logging so Residence Know if they missed a call. There is also a log of who uses a gate or door.
Download Install Manual
Outdoor Station Features
Brushed Aluminium Front Panel and Mechanical Keys that are also back lit.
Weather proof (IP65)
Vandal Resistant
2 Megapixel HD Camera for sharp picture with wide viewing angle
Night Vision
The occupant may open 1 or 2 gates from their phone. If a # key is pressed followed by a PIN then another # then 1 or 2 different gates can be opened or if an RFID Card or Tag is touched 1 or 2 gates can also be opened.
Can call up to 4 Smart Phones or Tablets with and App anywhere in the world.
Smartphone or tablet can indicate whether gate or door is open or closed. Note: require an electrical connection to gate motor/lock that has monitoring facilities or installation of position sensor for this to work.
Can easily be connected to control an automatic driveway gate operator or release an electric strike/magnetic lock for a pedestrian gate or door.
When call button is pressed a voice message lets visitor know what's going on.
Can use more than one Outdoor Station per residence if there is more than one gate or door. Smartphone or Tablets can all be called at once or in sequence if not answered.
Smart phone App can also connect to and view stand alone IP cameras or those on an IP video surveillance system for different viewing angles. It can also access an video recorded on an NVR.
Outdoor Stations Camera can be viewed anytime from Smartphone, Tablet or IP video surveillance system.
Dimensions: 185mm x 85mm x 29mm
Power consumption is 1.9W so at 12V is around 158mA on standby and 5.58W or 465mA at peak power usage + the TRB140 draws 41mA on standby 233mA at peak.
